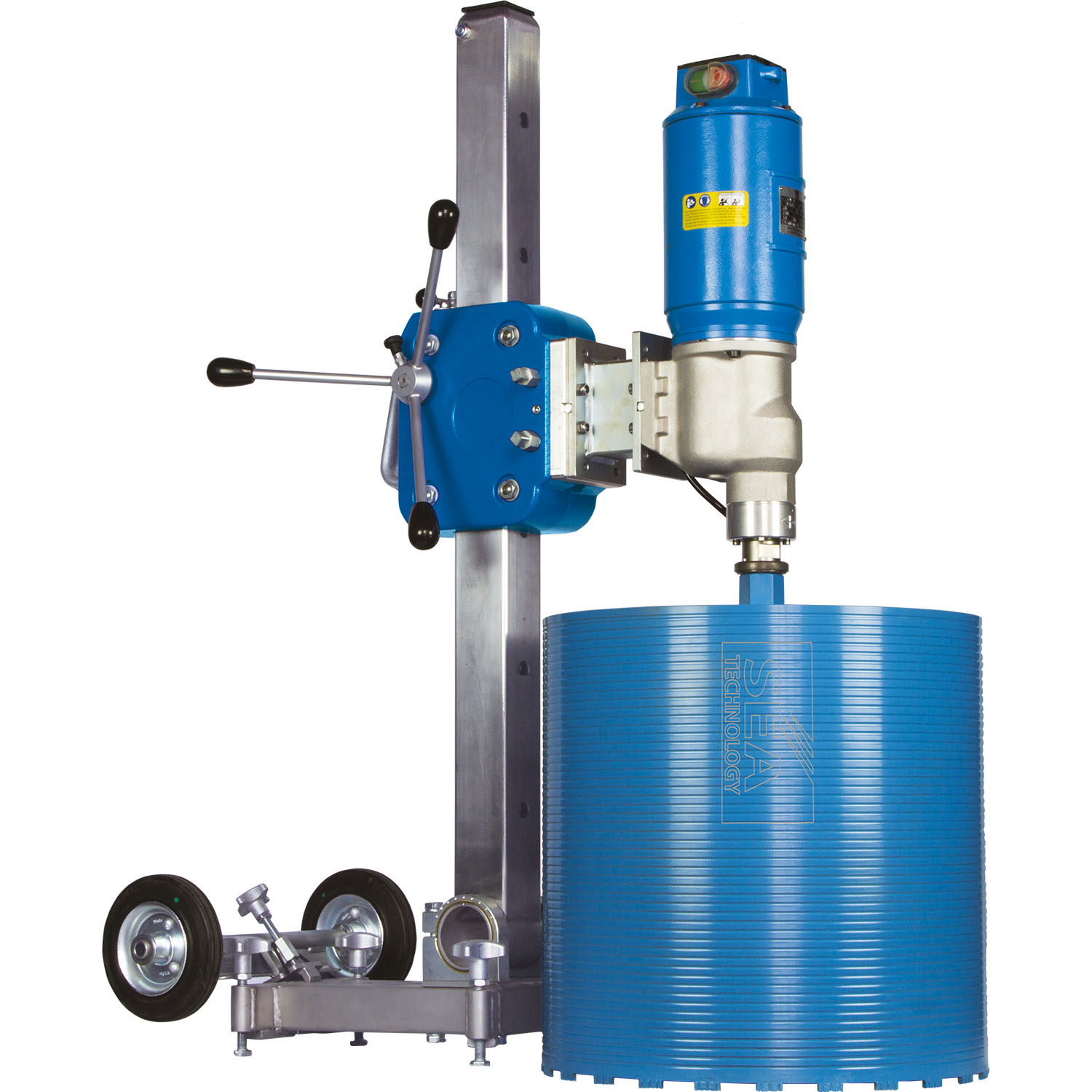

Seacore 500

SEACORE 500

Core bit not included

DESCRIPTION

The SEACORE 500 is the combination of SEM 52 motor and COLONNA PROFESSIONALE 600 and it is especially indicated for the hardest jobs. This system can drill up to 500 mm diameter and up to a maximum depth of 1090 mm. Wheels make its handling easier. Slantable up to 60° both on the interior and exterior.

TECHNICAL SPECIFICATIONS
DESCRIPTION
Water with 5200 W – 400 V motor Useful stroke: 690 mm
3 mechanically selectable motor speeds
1 – 140 rpm. 2 – 280 rpm. 3 – 430 rpm.
Quick motor release
Slantable 60°
Fitting 1”1/4 Rack opposite to the motor side
Suitable for drilling diam. Max. 500 mm Column weight : 26 kg Motor weight: 22,9 kg
CODE DESCRIPTION
SEACORE500 SEACORE500 PROFESSIONAL CORE DRILLING MACHINE COMPLETE WITH ACCESSORIES AND MOTOR
