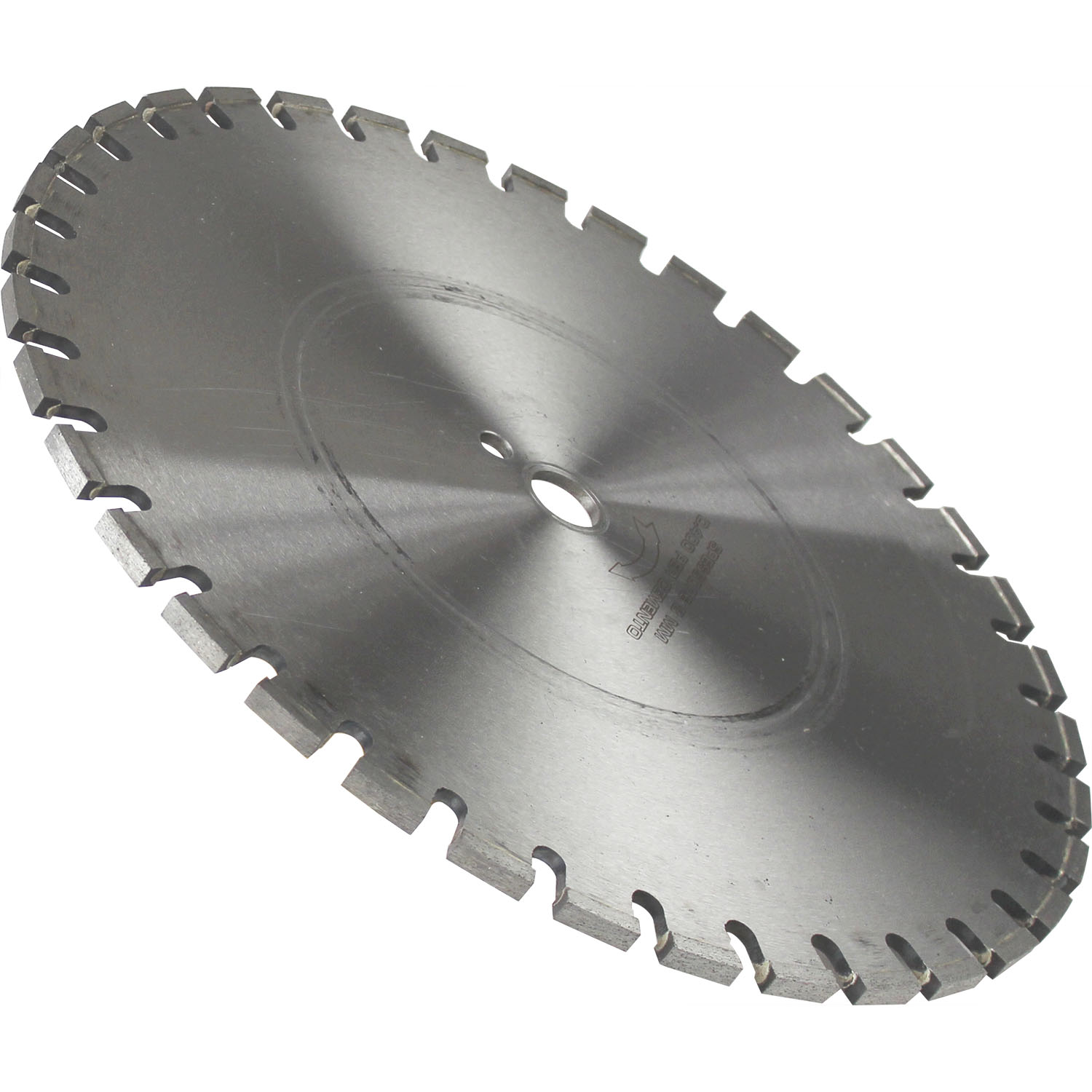

Asphalt diamond blade for grooves

ASPHALT DIAMOND BLADE FOR GROOVES

DESCRIPTION

Diamond blade for grooves with increased segment thickness, designed to cut tracks for the positioning of electric cables, optical fiber, electric circuits, etc. They can also be employed to open, recover or enlarge existing expansion joints. Suitable for floor cutting machines with 13 HP or higher power.

TECHNICAL SPECIFICATIONS
asphalt EXCELLENT
GREAT
GOOD
  AVERAGE
  FAIR
NOT SUITABLE
CODE HOLE THICKNESS mm USE
MBA300S06F25 300 25,4 + PIN 6 WET
MBA300S08F25 300 25,4 + PIN 8 WET
MBA300S10F25 300 25,4 + PIN 10 WET
MBA300S12F25 300 25,4 + PIN 12 WET
MBA300S15F25 300 25,4 + PIN 15 WET
MBA350S06F25 350 25,4 + PIN 6 WET
MBA350S08F25 350 25,4 + PIN 8 WET
MBA350S10F25 350 25,4 + PIN 10 WET
MBA350S12F25 350 25,4 + PIN 12 WET
MBA350S15F25 350 25,4 + PIN 15 WET
MBA400S06F25 400 25,4 + PIN 6 WET
MBA400S08F25 400 25,4 + PIN 8 WET
MBA400S10F25 400 25,4 + PIN 10 WET
MBA400S12F25 400 25,4 + PIN 12 WET
MBA400S15F25 400 25,4 + PIN 15 WET
MBA450S06F25 450 25,4 + PIN 6 WET
MBA450S08F25 450 25,4 + PIN 8 WET
MBA450S10F25 450 25,4 + PIN 10 WET
MBA450S12F25 450 25,4 + PIN 12 WET
MBA450S15F25 450 25,4 + PIN 15 WET
MBA450S20F25 450 25,4 + PIN 20 WET
MBA500S15F25 500 25,4 + PIN 15 WET
MBA500S20F25 500 25,4 + PIN 20 WET
MBA600S15F25 600 25,4 + PIN 15 WET
MBA600S20F25 600 25,4 + PIN 20 WET
