SSR38: per carotaggi fino a 400 mm di diametro, con 18 velocità importabili anche a utensile in uso DESCRIPTION

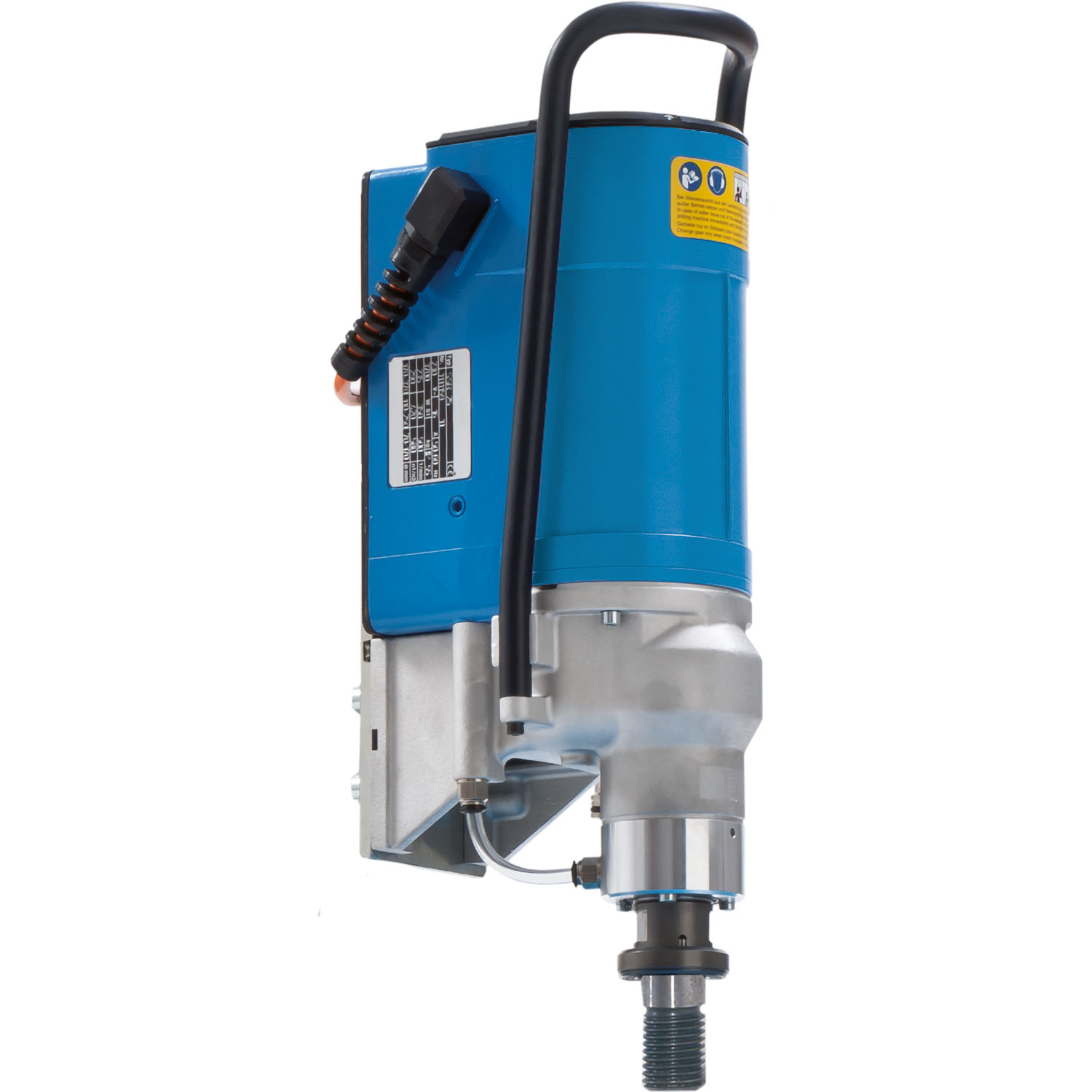

The SSR75 MOTOR is a engine for diamond coring machines suitable for use on a column and for drilling holes in materials such as rock, concrete, asphalt and masonry. The engine is equipped with a spherical cock that allows, through the emission of water, both the cooling of the engine itself and the removal of the resulting sludge. The engine is equipped with 3 mechanical speeds. For each mechanical speed, 6 electronic speeds are available which can be selected using the buttons on the control panel. This allows the user to carry out the core drilling with the number of revolutions appropriate to the diameter of the hole.
TECHNICAL SPECIFICATIONS
| DESCRIPTION |
| Nominal voltage: 400/3 V |
| Nominal current: 9,5 A |
| Nominal power: 7500 W |
| Useful power: 5700 W |
| Nominal frequency: 50-60 Hz |
| Full speed: Engine level 1: 60 – 70 – 85 – 100 – 115 Engine level 2: 115 – 140 – 165 – 200 – 230 Engine level 3: 180 – 215 – 260 – 310 – 360 |
| Fitting: 1”1/4 UNC |
| Ø drilling in concrete (mm): 150-950 |
| Speed: 5 electronic and 3 manual. Total Speed: 15 |
| Weight: 19,5 Kg |
| CODE | DESCRIPTION |
| SSR75 | ENGINE FOR DIAMOND CORE DRILL SSR75 |
